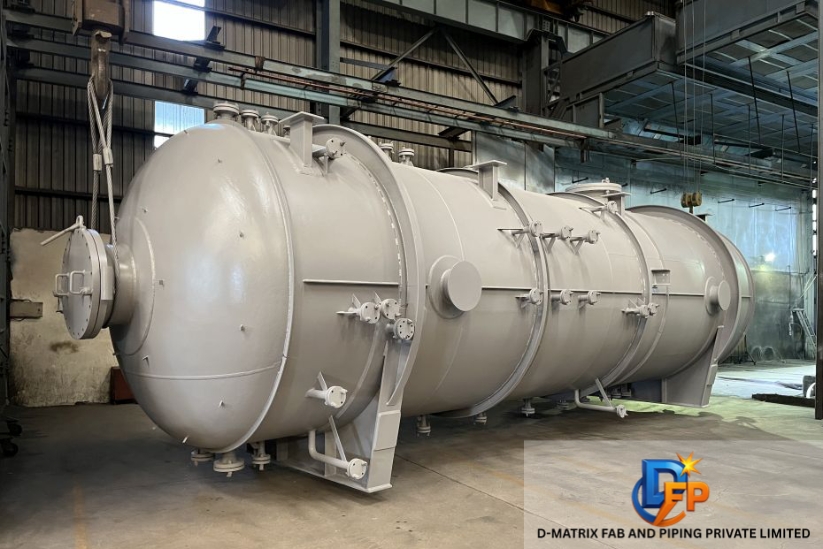

Pressure Vessels Manufacturers in India

Bladder Surge Vessels Supplier, Pressure Vessels Stockist, Chemical pressure vessels Exporter, Pressure Vessels Manufacturer in India

D-METRIX FAB AND PIPING PVT LTD is a well-established Pressure Vessels Manufacturer in India, supplying engineered solutions that are of high standard in terms of industrial and safety requirements. It is the speciality of a Pressure Vessel, its strong manufacturing and its strict fabrication, the length as long as 20,000 mm or as required, and the diameter as 5,000 mm or as required, with excellent exterior finish supporting it. In case of material construction, the choice may be between Carbon Steel, Stainless Steel, Duplex Steel, Hastelloy, and Inconel, with Carbon Steel being a common material used to construct pressure vessels because of its strength, durability, and cost efficiency of the material. We are also a leading Reactor Manufacturer in India.

Specification of Pressure Vessels

Pressure Vessels	Specification
Design Code	ASME Section VIII, Div. 1 / Div. 2, PED, API 650, IS 2825, etc.
Design Pressure	Up to 3000 PSI or as per requirement
Material Construction	Carbon Steel, Stainless Steel, Duplex Steel, Hastelloy, Inconel
Design Temperature	-196°C to 600°C or as per requirement
Diameter	Up to 5000 mm or as per requirement
Length	Up to 20000 mm or as per requirement
Type	Vertical and Horizontal
External Finish	Painted, Coated, Polished
Non-Destructive Testing (NDT)	Radiography, Ultrasonic, Magnetic Particle, Dye Penetrant
Insulation	Mineral Wool, Calcium Silicate, Ceramic Fiber, as required
Inspection Ports	Manholes, Handholes
Internal Finish	Lining (Rubber, FRP, PTFE), Polished, Clad
Heads Type	Elliptical, Hemispherical, Torispherical, Flat
