Bunk Hut, Porta Cabins, Fabricated House Manufacturers in India

Bunk Hut Supplier, Exporter, Portable Security Cabin, Fabricated House Manufacturer in India

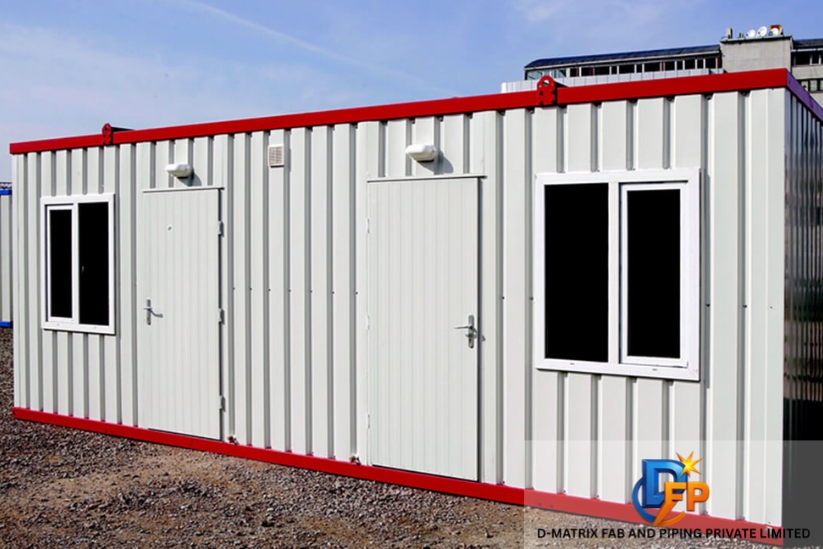

D-METRIX FAB and PIPING PVT LTD is the largest Bunk Hut / Porta Cabins / Fabricated House Manufacturer in India, which has standardized sizes in its range of 10 x 10 ft, 10 x 20 ft, and 12 x 40 ft to suit the requirements of different industries. Constructed of high-quality chemical and mechanical-resistant materials, every unit would have a safe electrical installation and excellent portability and modularity. The 6 units are manufactured to be optimally logistical with a 40 ft high-cube container holding capacity, and this makes Porta Cabins easy to transport and install at their sites within a short period. We are also leading the Sight Glass Manufacturer in India.

Specification of Fittings

Bunk Hut / Porta Cabins / Fabricated House	Specification
MS Steel Framing Structure	Specially formed 3mm thick mild steel frame with primer & synthetic enamel paint; corner sections designed for lifting; color options: Blue / Grey.
Flooring	18mm cement particle board on galvanized steel sections; load capacity 150 kg/sqm; PVC mat (1.5mm) in Grey or Plywood finish; underside coated with primer.
Wall & Ceiling Panels	50mm insulated sandwich panels with 0.50mm pre-painted galvanized iron sheets on both sides; color options: Off White / Blue.
Secondary Roofing	Additional galvalume sheet roofing with extra insulation layer for complete waterproofing and temperature control.
Windows	Powder-coated aluminum sliding windows (1170x900mm) with glass, grill, and canopy for protection.
Doors	Insulated sandwich panel doors (900x2100mm for main, 600x2100mm for toilet/bath); fitted with SS hinges, lock, closer, and stopper.
Electrical Fittings	Pre-fitted with lights, fan, 6A socket, and AC point (EPACK-approved electrical make).
AC Cut-Out (Optional)	Window AC cut-out available on request at order stage.
